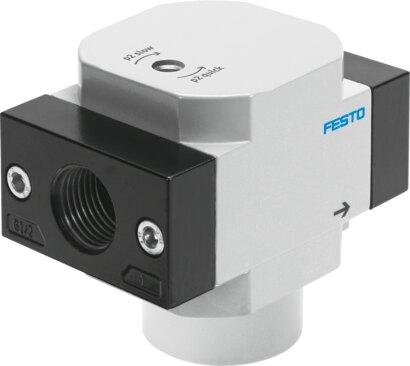

Reference imageConfirm configuration by manufacturer part number.
Festo
165078
On/off valve HEL-3/8-D-MINI
The Festo 165078 is a 2/2-way, closed, monostable industrial component featuring a piston gate valve structural design and direct pneumatic actuation with a mechanical spring reset method. It operates within a pressure range of 0.3 MPa to 1.6 MPa (3 bar to 16 bar) and delivers a normal nominal flow rate of 1600 l/min using compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases as the operating medium. Designed with an adjustable exhaust air function, soft sealing principle, and non-reversible flow direction, the unit functions at medium temperatures from -10 °C to 60 °C and supports optional oil lubrication. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 165078
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 165078.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Exhaust air function
- Adjustable
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve function
- 2/2-way, closed, monostable
- Operating pressure
- 0.3 MPa...1.6 MPa | 3 bar...16 bar
- b-value
- 0.3
- C value
- 7.6 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 126 g
- Type of mounting
- In-line installation
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast aluminum
