Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

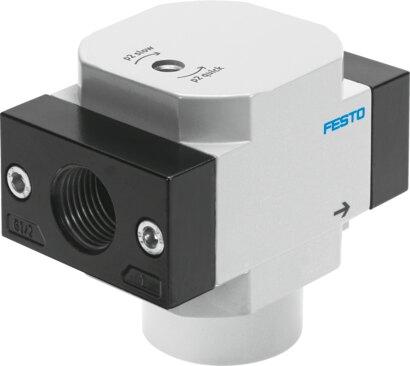

Reference imageConfirm configuration by manufacturer part number.
Festo
165079
On/off valve HEL-3/8-D-MIDI
The Festo 165079 is a directly controlled 2/2-way closed monostable piston gate valve featuring a soft sealing principle and an adjustable exhaust air function with a mechanical spring reset. This pneumatic component operates within a pressure range of 0.3 MPa to 1.6 MPa (3 bar to 16 bar) and delivers a normal nominal flow rate of 3200 l/min, a C value of 16.5 l/sbar, and a b-value of 0.39 for compressed air or inert gases per ISO 8573-1:2010 [7:4:4] across a medium temperature of -10 °C to 60 °C. Designed with any mounting position, non-reversible flow direction, and moderate corrosion resistance class (CRC 2), it permits operation with oil lubrication and complies with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 165079
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 165079.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Exhaust air function
- Adjustable
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- directly
- Flow direction
- Non-reversible
- Valve function
- 2/2-way, closed, monostable
- Operating pressure
- 0.3 MPa...1.6 MPa | 3 bar...16 bar
- b-value
- 0.39
- C value
- 16.5 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 3200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 270 g
- Type of mounting
- In-line installation
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 165079. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
