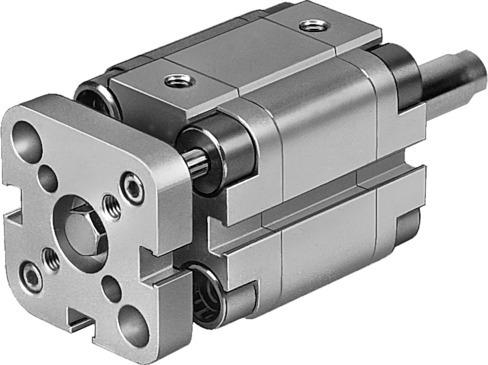

Reference imageConfirm configuration by manufacturer part number.
Festo
165089
Compact air cylinder ADVUL-12- -P-A-S2
The Festo part number 165089 is a double-acting industrial component featuring a 12 mm piston diameter, an adjustable stroke ranging from 1 mm to 200 mm, and a through piston rod with a guide rod and yoke for torsion protection. Designed with elastic cushioning rings at both ends, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.15 MPa to 1 MPa and accommodates an ambient temperature span of -20 °C to 80 °C. It delivers a theoretical force of 51 N upon both retraction and advancement at 6 bar through an M5 pneumatic connection, features position sensing for proximity sensors, and maintains a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 165089
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 165089.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...200 mm
- Piston diameter
- 12 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Through piston rod
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.07 J
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 51 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Flange screws material
- High-alloy stainless steel
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 165089. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
