Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

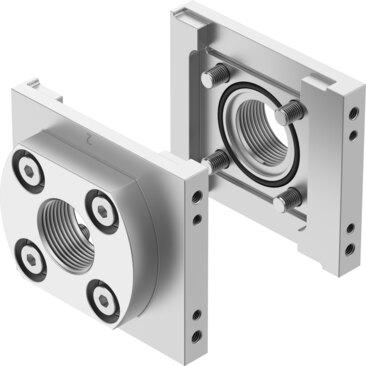

Reference imageConfirm configuration by manufacturer part number.
Festo
1651541
Sub-base PAML-CP-90-HP3-G12
The Festo part number 1651541 is an industrial component of series L, size 90, featuring a nominal width DN of 36 and a product weight of 770 g. This component operates with compressed air as per ISO 8573-1:2010 [-:-:-] within an operating pressure range of 0 MPa to 5 MPa (0 bar to 50 bar), utilizing pneumatic connections G1/2 for both connection 1 and connection 2. Constructed with a wrought aluminum alloy sub-base, NBR seals, and high-grade steel screws, it offers a corrosion resistance class (CRC) of 2, VDMA24364-B2-L LABS conformity, RoHS compliance, and is intended for use in the food industry as detailed in supplementary material information. It functions within a medium and ambient temperature range of 5 °C to 60 °C and a storage temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1651541
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1651541.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 36
- Series
- L
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 770 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
- Seals material
- NBR
- Material of screws
- High-grade steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1651541. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
