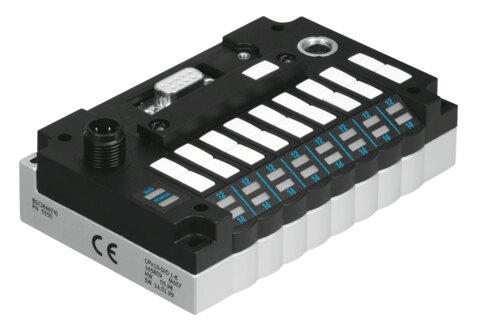

Name: Festo 165809 Electrical interface CPV10-GE-DI01-8
Brand: Festo

Electrical interface CPV10-GE-DI01-8

The Festo part number 165809 is an industrial component featuring a DC operating voltage range of 20.4 V to 26.4 V, 16 inputs, 8 outputs, and CP string expansion support for up to 32 solenoid coils. It provides cyclic communication with automatic baud rate detection from 9.6 kBd to 12 MBaud via an M12 5-pin B-coded socket and plug or a 9-pin Sub-D interface. Device-specific diagnostics via DPV0 cover sensor power undervoltage, output short circuits or overloads, and missing modules on the CP string extension with an IP65 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 165809
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 165809.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CP string expansion: Yes | 16 inputs | 8 outputs (or 16 pneumatic valves)
Fieldbus interface: Alternatively: | Socket and plug, M12x1, 5-pin, B-coded | Sub-D, 9-pin, plug socket
Device-specic diagnostics: Via device-specic diagnostics (DPV0) | Missing module on CP string extension | Short circuit/overload of outputs | Undervoltage of outputs | Sensor power undervoltage | Undervoltage of pneumatic valves
Communication types: Cyclic communication
Conguration support: GSD les and bitmaps
Max. no. of solenoid coils with string expansion: 32
Max. no. of solenoid coils: 16
Reverse polarity protection: for all electrical connections
Baud rate: 9.6 kBd ... 12 MBaud | Automatic detection
DC operating voltage range: 20.4 V...26.4 V
Max. no. of outputs: (16 valve coils omitted) | 8
Max. number of inputs: 16
Nominal operating voltage DC: 24 V
Power failure buﬀering: 10 ms
Residual ripple: 4 Vss
Current consumption at load nominal operating voltage: Depends on pneumatic valve type
Current consumption at nominal operating voltage: Electronics: <= 100 mA | Sensor supply: depends on sensor
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Certication: c UL us - recognized (OL)
Product weight: 240 g
