165811

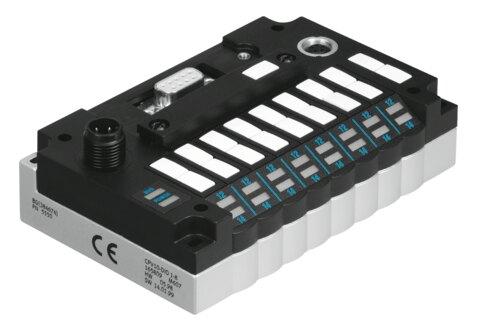

Name: Festo 165811 Electrical interface CPV14-GE-DI01-8
Brand: Festo

Electrical interface CPV14-GE-DI01-8

The Festo 165811 industrial component supports 16 inputs, 8 outputs, and CP string expansion accommodating up to 32 solenoid coils. It features an IP65 degree of protection, reverse polarity protection for all electrical connections, and an automatic baud rate detection ranging from 9.6 kBd to 12 MBaud. Device-specific diagnostics via DPV0 monitor for missing modules, short circuits, overloads, and undervoltage conditions. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 165811
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 165811.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CP string expansion: Yes | 16 inputs | 8 outputs (or 16 pneumatic valves)
Fieldbus interface: Alternatively: | Socket and plug, M12x1, 5-pin, B-coded | Sub-D, 9-pin, plug socket
Device-specic diagnostics: Via device-specic diagnostics (DPV0) | Missing module on CP string extension | Short circuit/overload of outputs | Undervoltage of outputs | Sensor power undervoltage | Undervoltage of pneumatic valves
Communication types: Cyclic communication
Conguration support: GSD les and bitmaps
Max. no. of solenoid coils with string expansion: 32
Max. no. of solenoid coils: 16
Reverse polarity protection: for all electrical connections
Baud rate: 9.6 kBd ... 12 MBaud | Automatic detection
DC operating voltage range: 20.4 V...26.4 V
Max. no. of outputs: (16 valve coils omitted) | 8
Max. number of inputs: 16
Nominal operating voltage DC: 24 V
Power failure buﬀering: 10 ms
Residual ripple: 4 Vss
Current consumption at load nominal operating voltage: Depends on pneumatic valve type
Current consumption at nominal operating voltage: Electronics: <= 100 mA | Sensor supply: depends on sensor
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Certication: c UL us - recognized (OL)
Product weight: 351 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 165811. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
