Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

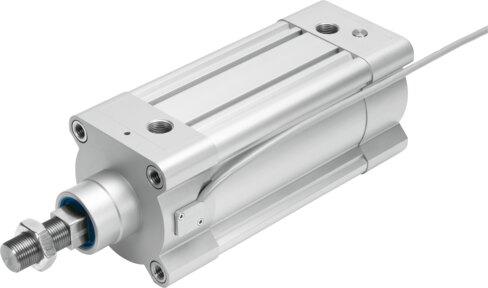

Reference imageConfirm configuration by manufacturer part number.
Festo
1677705
ISO cylinder DDPC-...-80- -
The Festo 1677705 is an industrial component featuring an 80 mm piston diameter and a stroke range from 10 mm to 2000 mm based on the ISO 15552 norm. It includes elastic cushioning rings at both ends, a digital linear potentiometer measuring principle, and operates at a maximum pressure of 1.2 MPa (12 bar, 174 psi) with travel speeds between 0.05 m/s and 1 m/s. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1677705
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1677705.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Stroke, servopneumatic positioning
- 50 mm...750 mm
- Soft Stop stroke
- 50 mm...750 mm
- Stroke reduction in the end positions
- >= 15 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 10 mm
- Piston diameter
- 80 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position, positioning
- Any
- Mounting position, Soft Stop
- Any
- Measuring principle of linear potentiometer
- digital
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch | With integrated linear potentiometer
- Variants
- Clamping unit attached | Extended piston rod | Piston rod at one end
- Protection against torsion/guide
- Guide rod with yoke | Square piston rod
- Operating pressure
- 1.2 MPa | 12 bar | 174 psi
- Operating pressure for positioning/soft stop
- 4 bar...8 bar
- Max. travel speed
- 1 m/s
- Min. travel speed
- 0.05 m/s
- Typical positioning time, short-stroke, horizontal
- 0.77/0.95 s
- Typical positioning time, long stroke, horizontal
- 0.88/1.02 s
- Mode of operation
- Double-acting
- Nominal operating voltage DC
- 5 V
- Certication
- RCM compliance mark
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1677705. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
