Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

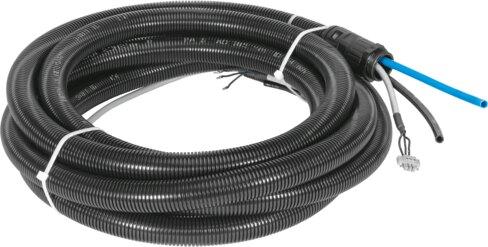

Reference imageConfirm configuration by manufacturer part number.
Festo
1686609
Connecting cable NHSB-A1-10-BLG3-LE3-PU8-2XBB
The Festo 1686609 is an industrial component featuring a 10 m protective tube length, a 3-pin straight plug to a 3-core open end, and a pneumatic connection for 8 mm outside diameter tubing. Constructed with PA protective conduit and fitting materials with RoHS compliance, this part weighs 2500 g and provides IP65, IP67, IP69K, and NEMA 4 degrees of protection. It operates within a DC voltage range of 0 V to 30 V, handles an ambient temperature range of -20 °C to 60 °C, and accommodates compressed air operating media according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686609
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686609.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protective tube length
- 10 m
- Mounting position
- Any
- Use in exterior area
- Weather-protected locations class C1 based on IEC 60654-1
- DC operating voltage range
- 0 V...30 V
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Relative air humidity
- 5 - 100% | Condensating
- Degree of protection
- IP65 | IP67 | IP69K | NEMA 4
- Ambient temperature
- -20 °C...60 °C
- Ambient temperature with exible cable installation
- -5 °C...60 °C
- Electrical connection 1
- Straight plug, 3-pin
- Electrical connection 2
- Open end, 3-core
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Pneumatic connection
- For pneumatic tubing outside diameter 8 mm
- Min. cable bending radius
- 100 mm
- Cable design
- 3 x 0.75 mm²
- Product weight
- 2500 g
- Note on materials
- RoHS compliant
- Protective conduit material
- PA
- Protective conduit tting material
- PA
- Material of cable sheath
- PVC
- Seals material
- TPE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1686609. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
