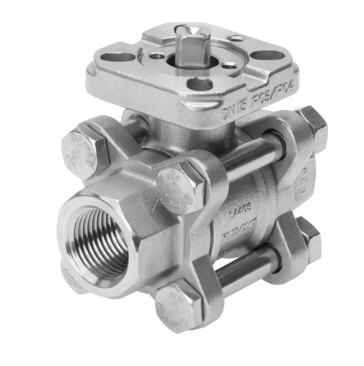

Reference imageConfirm configuration by manufacturer part number.
Festo
1686636
Ball valve VZBA-1/2"-GG-63-T-22-F0304-V4V4T
The Festo 1686636 is a 2/2-way mechanical industrial component featuring a soft sealing principle, an Rp1/2 fitting connection, and a 16 mm inside diameter with a nominal width DN of 15. Built with an F03 and F04 flange hole pattern and a nominal pressure PN of 63, this 2-way ball valve operates at a medium temperature range of -10 °C to 200 °C and a flow rate Kv of 19.4 m³/h for compressed air, inert gas, water without vapor, and neutral liquids. It supports in-line installation in any mounting position, features reversible flow direction, and relies on an actuating torque of 10 Nm based on DIN 3202-M3, EN 10226-1, and ISO 5211 norms. Submit your required quantity and application details for an official quote on this RoHS-compliant Festo part number.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686636
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686636.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 16 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 10 Nm
- Based on norm
- DIN 3202-M3 | EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 19.4 m³/h
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1686636. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
