Festo
1686651

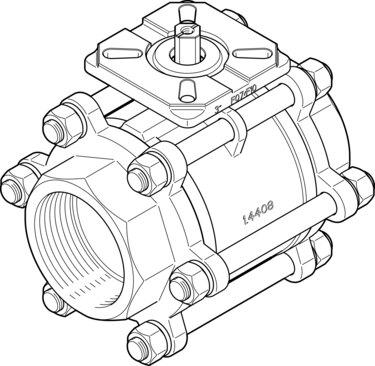

Ball valve VZBA-3"-GG-63-T-22-F0710-V4V4T
The Festo 1686651 is a mechanical 2-way ball valve featuring a soft sealing principle, an 80 mm inside diameter, and a nominal width DN of 80 for in-line installation in any mounting position. Built with an Rp3 fitting connection, F07 and F10 flange hole patterns, and an actuating torque of 112 Nm at a nominal pressure PN of 63, it supports a reversible flow direction and handles a flow rate Kv of 905 m³/h across a medium temperature range of -10 °C to 200 °C. Compatible with compressed air, inert gas, water without water vapor, and neutral liquids based on DIN 3202-M3, EN 10226-1, and ISO 5211 norms, this RoHS-compliant component provides a slot direction switching position indication without manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686651
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686651.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp3
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07 | F10
- Inside diameter
- 80 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 112 Nm
- Based on norm
- DIN 3202-M3 | EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 905 m³/h
- Note on materials
- RoHS compliant
