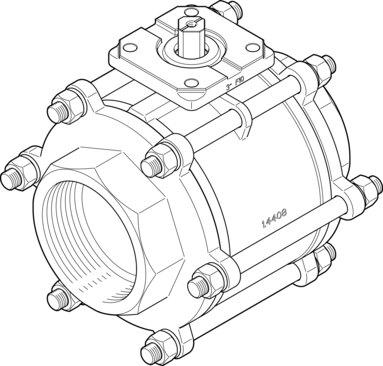

Reference imageConfirm configuration by manufacturer part number.
Festo
1686654
Ball valve VZBA-4"-GG-63-T-22-F10-V4V4T
The Festo 1686654 is a 2-way mechanical ball valve featuring a soft sealing principle and an inside diameter and nominal width DN of 100 mm, designed for in-line installation with an Rp4 fitting connection and an F10 flange hole pattern. Based on DIN 3202-M3, EN 10226-1, and ISO 5211 norms, this 2/2 valve handles a nominal pressure PN of 63, an actuating torque of 140 Nm, and a flow rate Kv of 1414 m³/h across a medium temperature range of -10 °C to 200 °C. It accommodates compressed air, inert gas, water without water vapor, and neutral liquids with a reversible flow direction, any mounting position, and slot-direction flow indication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686654
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686654.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F10
- Inside diameter
- 100 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 140 Nm
- Based on norm
- DIN 3202-M3 | EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 1414 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1686654. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
