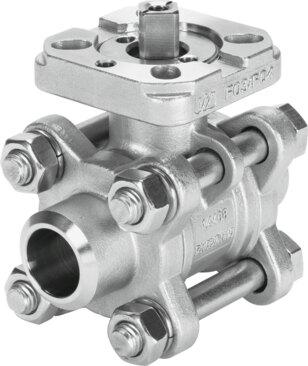

Reference imageConfirm configuration by manufacturer part number.
Festo
1686663
Ball valve VZBA-1/2"-WW-63-T-22-F0304-V4V4T
The Festo 1686663 is a mechanical 2-way ball valve featuring a soft sealing principle, an inside diameter of 16 mm, and a nominal width DN of 15 configured for 2/2 valve function. Built for in-line installation with weld-on ends and an F03 or F04 flange hole pattern, this component operates at a nominal pressure PN of 63 with an actuating torque of 10 Nm across a medium temperature range of -10 °C to 200 °C. It accommodates compressed air, inert gas, water, and neutral liquids through a reversible flow direction with a flow rate Kv of 19.4 m³/h, based on DIN 3202-S13 and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on ends/weld-on ends
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 16 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 10 Nm
- Based on norm
- DIN 3202-S13 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 19.4 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
