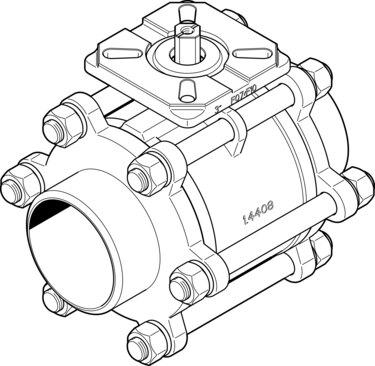

Reference imageConfirm configuration by manufacturer part number.
Festo
1686704
Ball valve VZBA-3"-WW-63-T-22-F0710-V4V4T
The Festo 1686704 is a mechanical 2-way soft-sealing ball valve featuring an 80 mm inside diameter, a nominal width DN of 80, and weld-on ends on both fittings for in-line installation in any mounting position. Designed with a 2/2 valve function, a nominal pressure PN of 63, and an actuating torque of 112 Nm, this reversible flow component accommodates a medium temperature range of -10 °C to 200 °C and a flow rate Kv of 905 m³/h based on DIN 3202-S13 and ISO 5211 norms. It includes an F07 and F10 flange hole pattern, a slot direction matching the flow direction for switching position indication, and RoHS-compliant materials for compressed air, inert gas, water, and neutral liquids. Submit the part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1686704
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1686704.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on ends/weld-on ends
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07 | F10
- Inside diameter
- 80 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 112 Nm
- Based on norm
- DIN 3202-S13 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 905 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1686704. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
