1686705

Name: Festo 1686705 Ball valve VZBA-4"-WW-63-T-22-F10-V4V4T
Brand: Festo

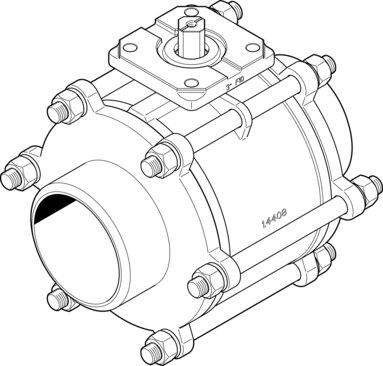

Ball valve VZBA-4"-WW-63-T-22-F10-V4V4T

The Festo 1686705 is a mechanical 2-way ball valve featuring a 100 mm inside diameter, a nominal width DN of 100, and weld-on ends for in-line installation in any mounting position. Designed with a soft sealing principle, a nominal pressure PN of 63, and an actuating torque of 140 Nm, this 2/2 valve handles media temperatures from -10 °C to 200 °C with a flow rate Kv of 1414 m³/h. It accommodates compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water without water vapor, neutral liquids, and other flow media on request, utilizing an F10 flange hole pattern based on DIN 3202-S13 and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to request a quote for this RoHS-compliant component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1686705
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1686705.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 2-way ball valve
Actuation type: Mechanical
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Weld-on ends/weld-on ends
Switching position indication: Slot direction = ow direction
Flange hole pattern: F10
Inside diameter: 100 mm
Nominal width DN: 100
Valve function: 2/2
Manual override: None
Flow direction: Reversible
Nominal pressure of tting PN: 63
Actuating torque: 140 Nm
Based on norm: DIN 3202-S13 | ISO 5211
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
Temperature of medium: -10 °C...200 °C
Flow rate Kv: 1414 m³/h
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1686705. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
