Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

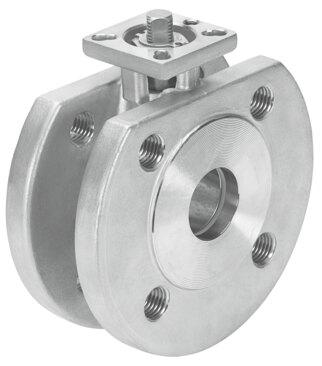

Reference imageConfirm configuration by manufacturer part number.
Festo
1692201
Ball valve VZBC-25-FF-40-22-F0405-V4V4T
The Festo part number 1692201 is a mechanical 2-way ball valve featuring a soft sealing principle and a nominal width DN of 25 mm with an inside diameter of 25 mm. Designed for in-line installation in any mounting position, this 2/2 valve operates with an actuating torque of 17 Nm and a nominal pressure PN of 40 based on EN 1092-1 and ISO 5211 norms, accommodating a medium temperature range from -10 °C to 200 °C and a flow rate Kv of 71.5 m³/h. The RoHS compliant unit utilizes an F04 or F05 flange hole pattern, a ring housing with threaded flange, and a reversible flow direction suitable for compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water without water vapor, neutral liquids, and other flow media upon request. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Ring housing with threaded ange
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04 | F05
- Inside diameter
- 25 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Actuating torque
- 17 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 71.5 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692201. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
