Festo
1692204

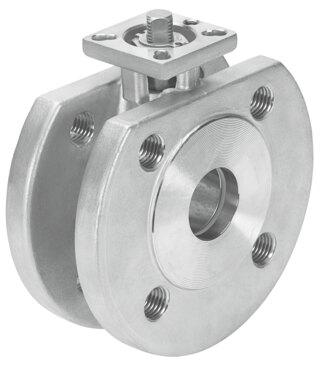

Ball valve VZBC-40-FF-40-22-F0507-V4V4T
This Festo 1692204 industrial component features a 2-way ball valve structural design with a mechanical actuation type and soft sealing principle for in-line installation in any mounting position. The 2/2 valve function utilizes a 38 mm inside diameter, nominal width DN 40, and ring housing with threaded flange based on EN 1092-1 and ISO 5211 norms with F05 and F07 flange hole patterns. Operating at a nominal pressure PN of 40 and an actuating torque of 35 Nm, it handles a medium temperature range of -10 °C to 200 °C with a flow rate Kv of 170 m³/h for compressed air, inert gas, water, and neutral liquids. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Ring housing with threaded ange
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F05 | F07
- Inside diameter
- 38 mm
- Nominal width DN
- 40
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Actuating torque
- 35 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 170 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692204. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
