Festo
1692206

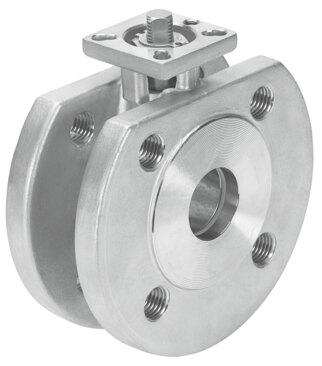

Ball valve VZBC-50-FF-40-22-F0507-V4V4T
The Festo 1692206 is a mechanical 2-way ball valve featuring a soft sealing principle, a nominal width DN of 50, and an inside diameter of 50 mm. Built for in-line installation in any mounting position, this 2/2 valve handles a nominal pressure PN of 40, an actuating torque of 54 Nm, and a flow rate Kv of 275 m³/h across a medium temperature range of -10 °C to 200 °C. Compliant with EN 1092-1 and ISO 5211 norms with F05 and F07 flange hole patterns, the unit accommodates compressed air, inert gases, water without vapor, neutral liquids, and other flow media upon request. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Ring housing with threaded ange
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F05 | F07
- Inside diameter
- 50 mm
- Nominal width DN
- 50
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Actuating torque
- 54 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 275 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692206. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
