Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

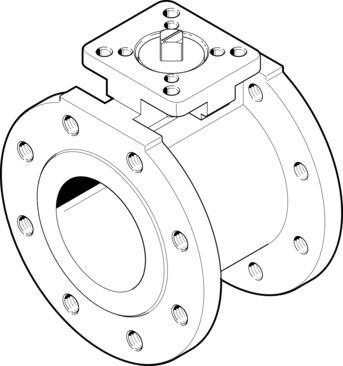

Reference imageConfirm configuration by manufacturer part number.
Festo
1692208
Ball valve VZBC-80-FF-16-22-F07-V4V4T
The Festo 1692208 is a 2-way mechanical ball valve featuring a soft sealing principle and an inside diameter of 76 mm with a nominal width DN of 80. Built for in-line installation with any mounting position, this 2/2 valve utilizes a ring housing with a threaded flange, an F07 flange hole pattern, and operates based on EN 1092-1 and ISO 5211 norms with a nominal pressure PN of 16 and an actuating torque of 117 Nm. The unit accommodates a medium temperature range of -10 °C to 200 °C, delivers a flow rate Kv of 905 m³/h, and handles compressed air, inert gas, water, neutral liquids, and other flow media on request. Please submit the exact part number, quantity, and application requirements for a formal price quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Ring housing with threaded ange
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07
- Inside diameter
- 76 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Actuating torque
- 117 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 905 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692208. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
