Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1692209

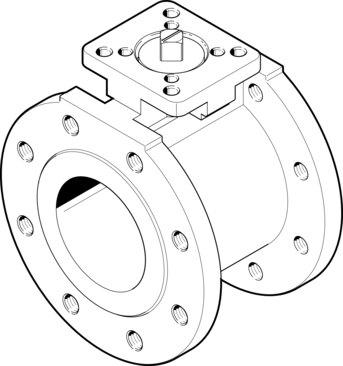

Ball valve VZBC-100-FF-16-22-F0710-V4V4T
The Festo 1692209 is a 2-way mechanical soft-sealed ball valve featuring a nominal width DN of 100, a 96 mm inside diameter, and an actuating torque of 148 Nm for in-line installation in any mounting position. Built with a reversible flow direction and a flow rate Kv of 1414 m³/h, this 2/2 valve operates on compressed air, inert gas, water without vapor, and neutral liquids at medium temperatures ranging from -10 °C to 200 °C under a nominal pressure PN of 16. It incorporates a ring housing with a threaded flange, an F07 and F10 flange hole pattern based on EN 1092-1 and ISO 5211 standards, and a switching position indication where the slot direction aligns with the flow direction. Submit the exact part number, quantity, and application requirements to request a formal quote for this RoHS compliant industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Ring housing with threaded ange
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07 | F10
- Inside diameter
- 96 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Actuating torque
- 148 Nm
- Based on norm
- EN 1092-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv
- 1414 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692209. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
