Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

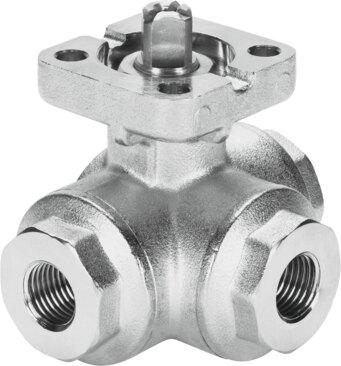

Reference imageConfirm configuration by manufacturer part number.
Festo
1692212
Ball valve VZBA-1/2"-GGG-63-32L-F0304-V4V4T
The Festo 1692212 is a mechanical 3-way ball valve featuring an L bore, a soft sealing principle, and an Rp1/2 fitting connection with a nominal width DN of 15. Built for in-line installation in any mounting position, this 3/2 valve operates at a nominal pressure PN of 63 and handles a medium temperature range of -10 °C to 200 °C with a flow rate Kv of 4.7 m³/h. It accommodates compressed air, inert gas, water, neutral liquids, and reversible flow directions based on EN 10226-1 and ISO 5211 norms, featuring F03 and F04 flange hole patterns alongside an actuating torque of 13 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692212
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692212.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F04
- Inside diameter
- 12.7 mm
- Nominal width DN
- 15
- Valve function
- 3/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 13 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv type L
- 4.7 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
