Festo
1692219

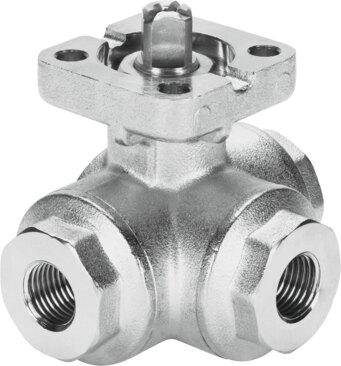

Ball valve VZBA-2"-GGG-63-32L-F0507-V4V4T
The Festo 1692219 is a mechanical 3-way ball valve featuring an L bore, a nominal width DN of 50, and an Rp2 fitting connection based on EN 10226-1 and ISO 5211 norms. Engineered with soft sealing, an F05 and F07 flange hole pattern, and a nominal pressure PN of 63, this in-line component operates with a reversible flow direction across a medium temperature range of -10 °C to 200 °C. It accommodates compressed air, inert gas, water without water vapor, and neutral liquids with a Kv flow rate of 53.7 m³/h and an actuating torque of 68 Nm in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F05 | F07
- Inside diameter
- 38.1 mm
- Nominal width DN
- 50
- Valve function
- 3/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 68 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv type L
- 53.7 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1692219. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
