1692221

Name: Festo 1692221 Ball valve VZBA-3/8"-GGG-63-32T-F0304-V4V4T
Brand: Festo

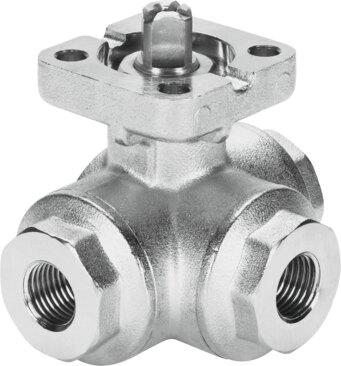

Ball valve VZBA-3/8"-GGG-63-32T-F0304-V4V4T

The Festo 1692221 is a mechanical 3-way industrial ball valve featuring a T-hole structural design with a 3/2 valve function, a 10 mm nominal width DN, and a 12.7 mm inside diameter for in-line installation in any mounting position. Compliant with EN 10226-1 and ISO 5211 standards with an F03 and F04 flange hole pattern, this component utilizes a soft sealing principle and accommodates a nominal pressure PN of 63 with an actuating torque of 13 Nm. It handles a medium temperature range from -10 °C to 200 °C, supporting compressed air, inert gas, water, and neutral liquids with reversible flow direction, slot-direction switching position indication, and flow rate Kv values of 4.5 m³/h for the T-corner type and 8 m³/h for the T-straight type. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1692221
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1692221.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 3-way ball valve | T hole
Actuation type: Mechanical
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Rp3/8
Switching position indication: Slot direction = ow direction
Flange hole pattern: F03 | F04
Inside diameter: 12.7 mm
Nominal width DN: 10
Valve function: 3/2
Manual override: None
Flow direction: Reversible
Nominal pressure of tting PN: 63
Actuating torque: 13 Nm
Based on norm: EN 10226-1 | ISO 5211
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
Temperature of medium: -10 °C...200 °C
Flow rate Kv type T corner: 4.5 m³/h
Flow rate Kv type T straight: 8 m³/h
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1692221. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
