Festo
1692228

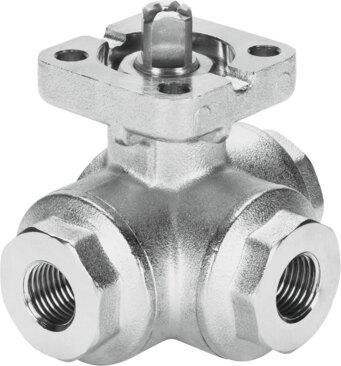

Ball valve VZBA-11/4"-GGG-63-32T-F0405-V4V4T
The Festo 1692228 is a 3-way mechanical ball valve featuring a T-hole structural design, a soft sealing principle, and an Rp1 1/4 fitting connection with a nominal width DN of 32. Operating with a nominal pressure PN of 63 and an actuating torque of 35 Nm, this in-line mountable component supports reversible flow for compressed air, inert gas, water, and neutral liquids across a medium temperature range of -10 °C to 200 °C. It complies with EN 10226-1 and ISO 5211 norms, incorporating F04 and F05 flange hole patterns alongside a slot direction switching position indication. Request a quote today by submitting your required quantity, part number, and application details.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692228
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692228.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1 1/4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04 | F05
- Inside diameter
- 25.4 mm
- Nominal width DN
- 32
- Valve function
- 3/2
- Manual override
- None
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Actuating torque
- 35 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids | Other ow media on request
- Temperature of medium
- -10 °C...200 °C
- Flow rate Kv type T corner
- 18 m³/h
- Flow rate Kv type T straight
- 36.5 m³/h
- Note on materials
- RoHS compliant
