Festo
1692770

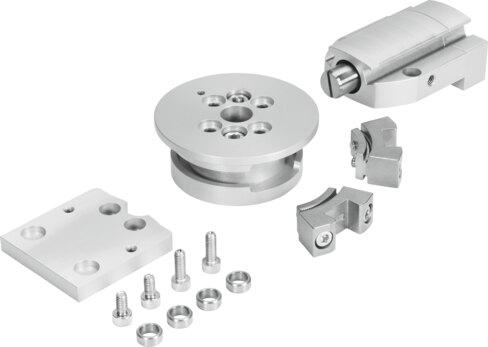

Clamping unit DADL-EL-Q11-16
The Festo 1692770 is a size 16 industrial component featuring a piston and piston rod structural design with an adjustment range of swivel angle from 60 deg to 200 deg. Operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar, 43.5 psi to 116 psi), this unit utilizes compressed air as per ISO 8573-1:2010 [7:-:-] and allows for oil lubrication. The hard-anodized aluminum housing includes an M5 pneumatic connection, NBR and TPE-U(PU) seals, a polymer bearing, and a product weight of 166 g. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1692770
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1692770.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Adjustment range of swivel angle
- 60 deg...200 deg
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 166 g
- Type of mounting
- Via through-hole and centering sleeve
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Aluminum | Hard-anodized
- Housing cover material
- Aluminum | Anodized
- Material of bearing
- Polymer
- Disc material
- Aluminum | Anodized
- Material of screws
- Steel | Galvanized
- Mode of operation
- Single-acting | Pulling
