Festo
170238
Connecting cable KMPYE-AIF-1-GS-GD-2
The Festo part number 170238 is an industrial component featuring product-specific pin assignment and accessories for cable designation. Electrical connection 1 is a field device side straight round socket with an M12x1 A-coded connection technology conforming to EN 61076-2-101, utilizing 4 pins and 4 occupied wires with a screw-type lock featuring AF 18 and longitudinal knurl, while electrical connection 2 is a control side straight round plug utilizing an M9x0.5 connection technology with 7 pins, 6 occupied wires, and a screw-type lock, providing a contact durability of 500 mating cycles. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Additional functions
- Product-specic pin assignment
- Cable designation
- With accessories
- Contact durability
- 500
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

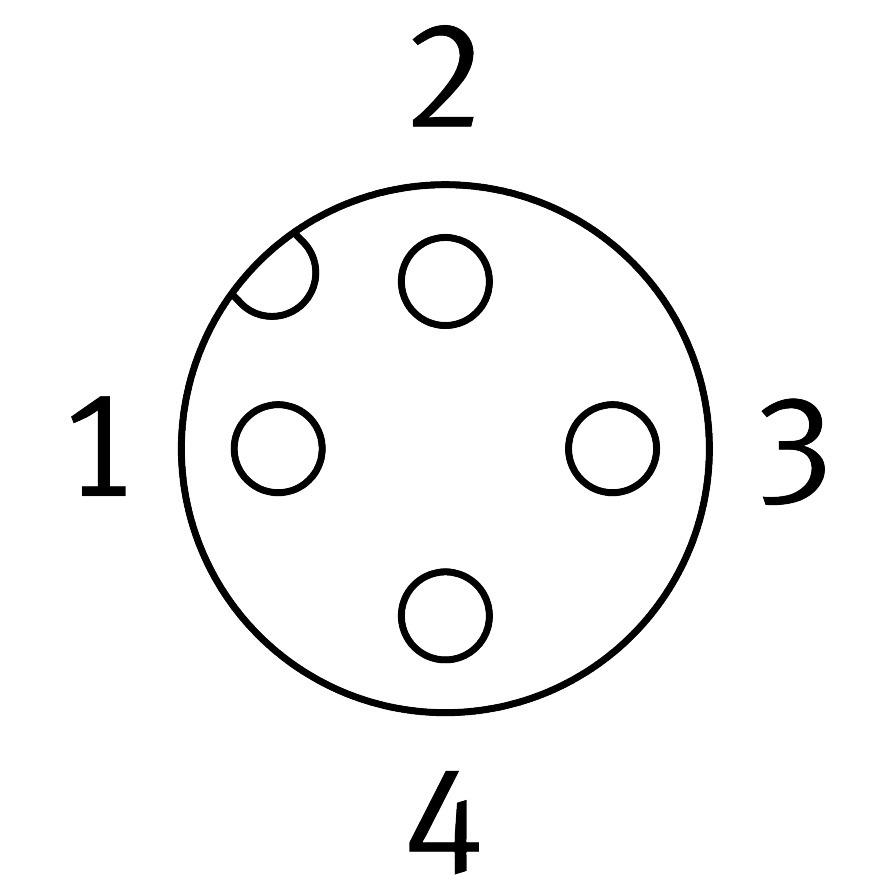

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with AF 18 and longitudinal knurl
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 7
- Electrical connection 2, occupied pins/wires
- 6
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...50 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 2 kV
- Shield
- Yes
- Cable length
- 2 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 5.6 mm
- Cable design
- 8 x 0.24 mm²
