Festo
170239
Connecting cable KMPYE-AIF-1-GS-GD-0,3
This Festo industrial component, part number 170239, features a straight M12x1 A-coded socket with a 4-pin round design conforming to EN 61076-2-101 on the field device side, and a straight M9x0.5 plug with 7 pins and 6 occupied wires on the control side. The unit incorporates product-specific pin assignment, a screw-type lock with AF 18 and longitudinal knurl on electrical connection 1, a screw-type lock on electrical connection 2, and a contact durability rating of 500 mating cycles. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Additional functions
- Product-specic pin assignment
- Cable designation
- With accessories
- Contact durability
- 500
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

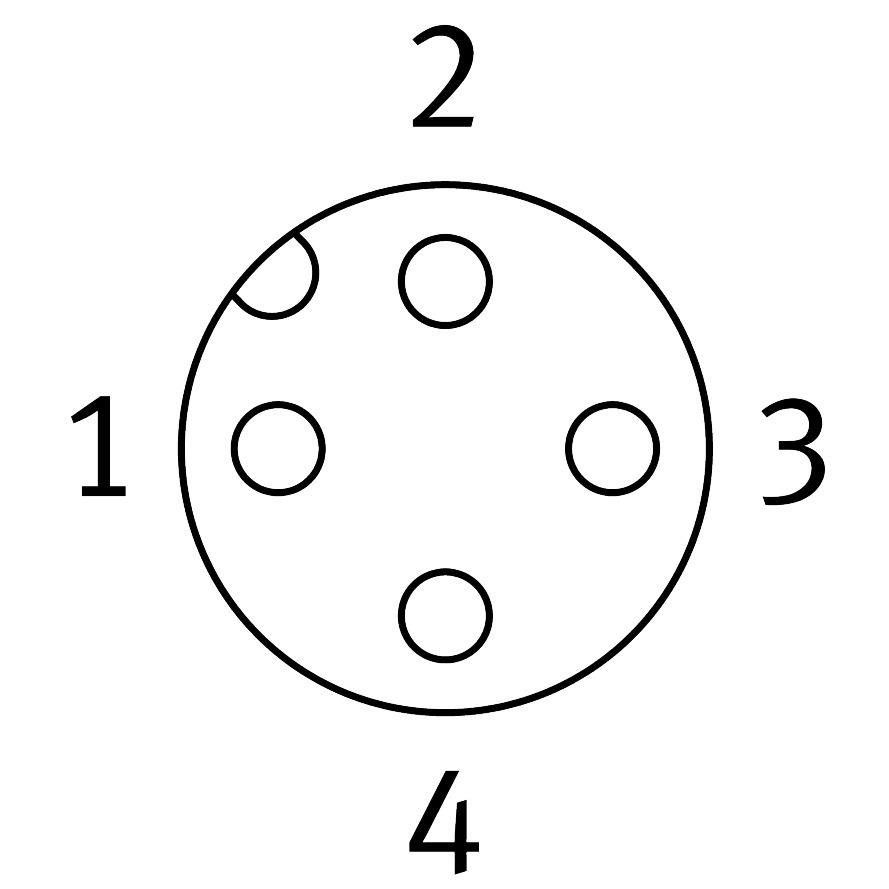

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with AF 18 and longitudinal knurl
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M9x0.5
- Electrical connection 2, number of pins/wires
- 7
- Electrical connection 2, occupied pins/wires
- 6
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...50 V
- Current rating at 40° C
- 1 A
- Surge resistance
- 2 kV
- Shield
- Yes
- Cable length
- 0.3 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 5.6 mm
- Cable design
- 8 x 0.24 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170239. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
