Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

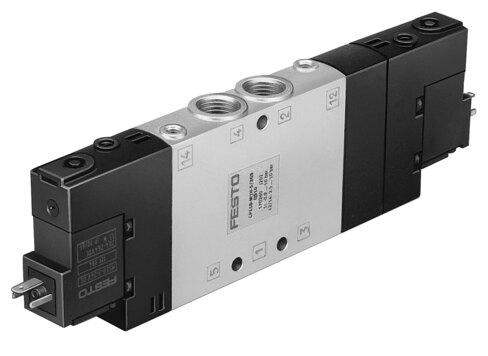

Reference imageConfirm configuration by manufacturer part number.
Festo
170250
Air solenoid valve CPE18-M1H-5/3ES-1/4
The Festo part number 170250 is an electrical 18 mm industrial component featuring a 5/3 exhausted valve function and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1200 l/min through G1/4 pneumatic working ports, operating at 24V DC within an operating pressure range of -0.09 MPa to 1 MPa. This piloted unit includes an 8 mm nominal width, mechanical spring reset method, adjustable exhaust air function, external pilot air supply port, and IP65 degree of protection with a plug socket as per IEC 60529, backed by c UL us recognition and DNV maritime classification. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170250
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170250.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- Switching time off
- 38 ms
- On switching time
- 20 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170250. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
