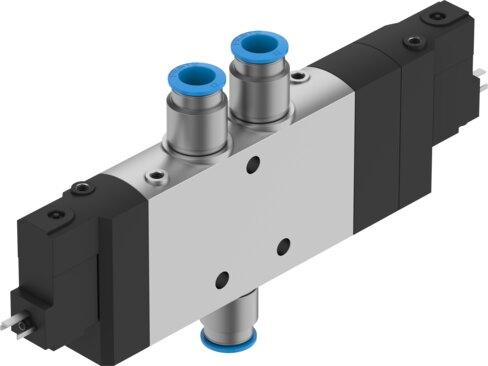

Reference imageConfirm configuration by manufacturer part number.
Festo
170279
Air solenoid valve CPE24-M1H-5/3E-QS-12
The Festo 170279 is an electrical piston gate valve featuring a 5/3 exhausted function and a 24 mm width. Designed with a piloted control type, internal pilot air supply, and soft sealing principle, it delivers a normal nominal flow rate of 1600 l/min through QS-12 pneumatic working ports. Operating at 24V DC within an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this component includes an adjustable exhaust air function and mechanical spring reset. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- QS-12
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 55 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse on 1 signal
- 3100 µs
