Reference imageConfirm configuration by manufacturer part number.
Festo
170311

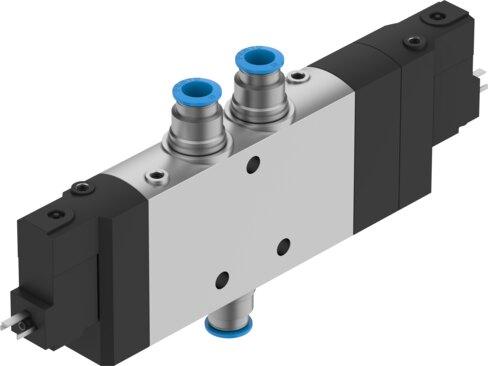

Air solenoid valve CPE24-M2H-5/3B-QS-10
The Festo 170311 is a 24 mm wide electrical piston gate valve featuring a 5/3-way pressurized valve function and a soft sealing principle with an 11 mm nominal width. Operating at 110V AC across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this component delivers a normal nominal flow rate of 1250 l/min through QS-10 pneumatic working ports and incorporates an adjustable exhaust air function. It is equipped with a mechanical spring reset method, detenting via accessory and non-detenting manual override, and offers IP65 protection with a plug socket in any mounting position. The assembly complies with the EU low voltage directive and UKCA electrical equipment instructions, backed by c UL us recognition and DNV maritime classification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170311
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170311.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1250 l/min
- Pneumatic working port
- QS-10
- Operating voltage
- 110V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 55 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170311. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
