Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

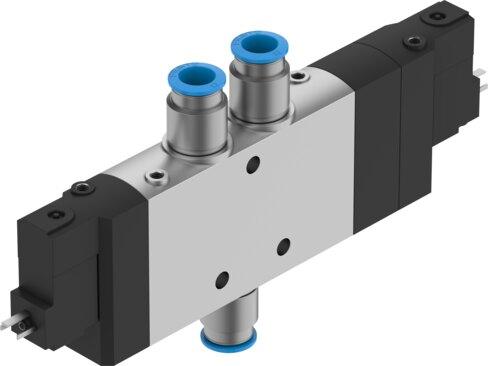

Reference imageConfirm configuration by manufacturer part number.
Festo
170317
Air solenoid valve CPE24-M2H-5/3B-QS-12
The Festo 170317 is a 24 mm wide electrical 5/3-way piston gate valve featuring a pressurized valve function, a normal nominal flow rate of 1600 l/min, and QS-12 pneumatic working ports. Operating at 110V AC across a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this IP65-rated component utilizes a soft sealing principle, a mechanical spring reset method, and an adjustable exhaust air function with both detenting and non-detenting manual override options. It includes c UL us recognition, DNV and UL certificate issuing authorities, and carries CE and UKCA markings compliant with relevant EU and UK directives. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170317
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170317.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- QS-12
- Operating voltage
- 110V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 55 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170317. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
