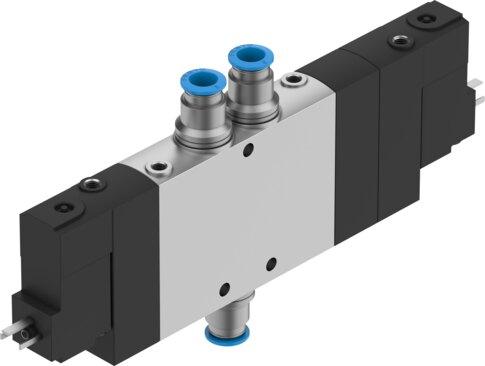

Reference imageConfirm configuration by manufacturer part number.
Festo
170329
Air solenoid valve CPE18-M3H-5/3B-QS-8
The Festo 170329 is an electrical 5/3-way pressurized industrial component featuring a piston gate valve structural design with an 18 mm width and an 8 mm nominal width. This unit delivers a normal nominal flow rate of 780 l/min through QS-8 pneumatic working ports at an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and operates on 230V AC. Constructed with a soft sealing principle, mechanical spring reset, and adjustable exhaust air function, the device offers IP65 protection with a plug socket and supports both detenting via accessory and non-detenting manual override. Certified by c UL us and DNV with CE and UKCA markings, the assembly accommodates any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170329
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170329.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 780 l/min
- Pneumatic working port
- QS-8
- Operating voltage
- 230V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 38 ms
- On switching time
- 20 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170329. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
