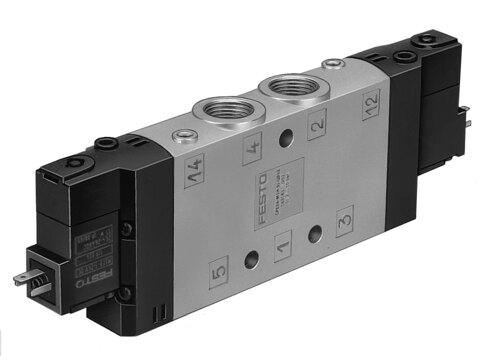

Reference imageConfirm configuration by manufacturer part number.
Festo
170337
Air solenoid valve CPE24-M3H-5/3G-3/8
The Festo 170337 is an electrical 5/3-way closed piston gate valve featuring a 24 mm width, an 11 mm nominal width, and a G3/8 pneumatic working port. Operating at 230V AC across a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), this component delivers a normal nominal flow rate of 3000 l/min with soft sealing and an adjustable exhaust air function. It incorporates a mechanical spring reset, an IP65 degree of protection with a plug socket, both detenting via accessory and non-detenting manual override options, and any mounting position. Certifications include c UL us recognition (OL), DNV-TAA000032X, UL MH19482, maritime classification, and CE and UKCA markings as per respective low voltage and electrical equipment directives. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170337
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170337.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 3000 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 230V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 55 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170337. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
