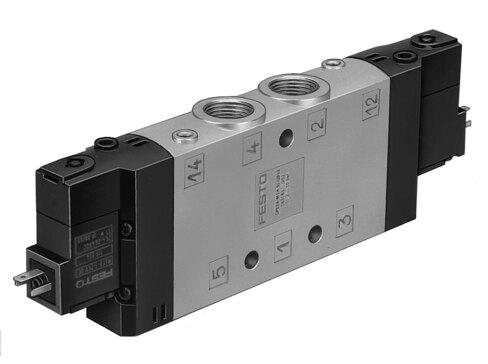

Reference imageConfirm configuration by manufacturer part number.
Festo
170341
Air solenoid valve CPE24-M3H-5/3B-3/8
The Festo 170341 is a 24 mm wide electrical industrial component featuring a 5/3-way pressurized valve function and a piston gate valve structural design with a soft sealing principle. Operating at 230V AC across an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), it delivers a normal nominal flow rate of 2600 l/min through G3/8 pneumatic working ports. This unit incorporates a mechanical spring reset method, an 11 mm nominal width, adjustable exhaust air function, IP65 degree of protection with plug socket, and both detenting via accessory and non-detenting manual override options. Certified by c UL us and DNV with applicable CE and UKCA markings, it supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170341
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170341.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 24 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 230V AC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 11 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Switching time off
- 55 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
