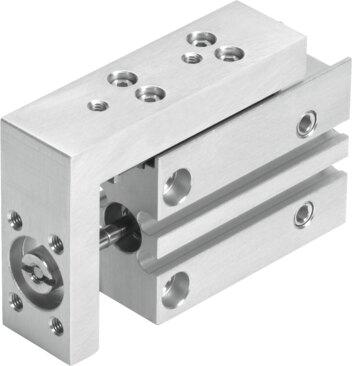

Reference imageConfirm configuration by manufacturer part number.
Festo
170488
Mini slide SLS-6-20-P-A
The Festo part number 170488 is a double-acting industrial component featuring a 6 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a ball bearing cage guide. It incorporates elastic cushioning rings or pads at both ends, accommodates any mounting position, and supports an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar, or 21.75 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4]. This unit delivers a maximum force Fy and Fz of 160 N, maximum torque Mx and My of 0.9 Nm, position sensing via proximity switch, and functions within an ambient temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 6 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Ball cage guide | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Impact energy in the end positions
- 0.008 Nm
- Max. force Fy
- 160 N
- Max. force Fz
- 160 N
- Max. torque Mx
- 0.9 Nm
- Max. torque My
- 0.9 Nm
- Max. torque Mz
- 0.6 Nm
- Theoretical force at 6 bar, retracting
- 13 N
- Theoretical force at 6 bar, advancing
- 17 N
- Moving mass
- 33 g
- Product weight
- 120 g
- Alternative connections
- See product drawing
- Type of mounting
- With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
