Festo
170504

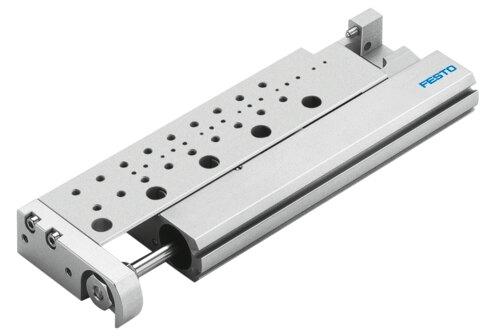

Mini slide SLF-6-20-P-A
The Festo part number 170504 is a double-acting industrial component featuring a 6 mm piston diameter, a 20 mm stroke, and an integrated ball bearing cage guide with a yoke structural design. It operates within a pressure range of 0.15 MPa to 1 MPa (2.175 bar to 10 bar / 21.75 psi to 145 psi) utilizing compressed air according to ISO 8573-1:2010 [7:4:4], with ambient temperature limits between -20 °C and 60 °C. This unit incorporates elastic cushioning rings at both ends, a 5 mm adjustable end position range, position sensing via proximity switch, a maximum force of 150 N for both Fy and Fz, and a maximum torque Mx of 1.1 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170504
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170504.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Adjustable end position range/length
- 5 mm
- Piston diameter
- 6 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Ball cage guide | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Impact energy in the end positions
- 0.016 Nm
- Max. force Fy
- 150 N
- Max. force Fz
- 150 N
- Max. torque Mx
- 1.1 Nm
- Max. torque My
- 1.1 Nm
- Max. torque Mz
- 0.7 Nm
- Theoretical force at 6 bar, retracting
- 13 N
- Theoretical force at 6 bar, advancing
- 17 N
- Moving mass
- 37 g
- Product weight
- 124 g
- Basic weight with 0 mm stroke
- 124 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170504. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
