Festo
170510

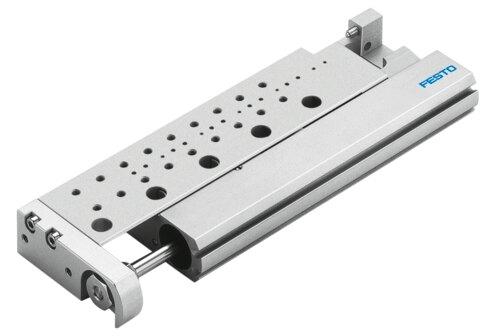

Mini slide SLF-10-50-P-A
The Festo part number 170510 is a double-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a ball bearing cage guide. It operates within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi) and uses compressed air compliant with ISO 8573-1:2010 [7:4:4], with optional oil lubrication permitted. This unit incorporates elastic cushioning rings at both ends, accommodates any mounting position, allows position sensing via a proximity switch, and withstands ambient temperatures from -20 °C to 60 °C while delivering a maximum force Fy and Fz of 190 N alongside a maximum torque Mx of 1.4 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Adjustable end position range/length
- 5 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Ball cage guide | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Impact energy in the end positions
- 0.05 Nm
- Max. force Fy
- 190 N
- Max. force Fz
- 190 N
- Max. torque Mx
- 1.4 Nm
- Max. torque My
- 1.4 Nm
- Max. torque Mz
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Moving mass
- 79 g
- Product weight
- 227 g
- Basic weight with 0 mm stroke
- 227 g
