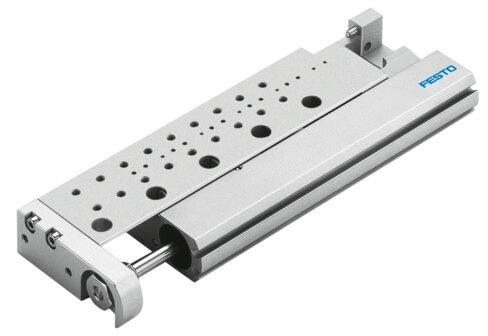

Reference imageConfirm configuration by manufacturer part number.
Festo
170511
Mini slide SLF-16-10-P-A
The Festo part number 170511 is a double-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke drive unit with an integrated ball bearing cage guide. Operating within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi) and an ambient temperature range of -20 °C to 60 °C, this unit includes elastic cushioning rings at both ends and allows for position sensing via proximity switch. It accommodates a max force of 470 N for both Fy and Fz, a max torque Mx of 2.1 Nm, and a 5 mm adjustable end position range. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170511
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170511.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Adjustable end position range/length
- 5 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Ball cage guide | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Impact energy in the end positions
- 0.1 Nm
- Max. force Fy
- 470 N
- Max. force Fz
- 470 N
- Max. torque Mx
- 2.1 Nm
- Max. torque My
- 2.1 Nm
- Max. torque Mz
- 1.6 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 99 g
- Product weight
- 257 g
- Basic weight with 0 mm stroke
- 257 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170511. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
