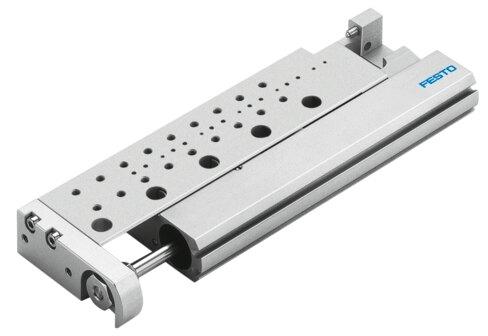

Reference imageConfirm configuration by manufacturer part number.
Festo
170514
Mini slide SLF-16-40-P-A
The Festo part number 170514 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with an integrated slide, piston rod, and ball cage guide. This unit operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar / 14.5 psi to 145 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4], with an ambient temperature range of -20 °C to 60 °C and elastic cushioning rings at both ends accommodating a 5 mm adjustable end position range. It delivers a maximum force Fy and Fz of 350 N, a maximum torque Mx of 2.2 Nm, and 0.1 Nm impact energy in the end positions, while supporting position sensing via proximity switch and oil-lubricated operation. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170514
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170514.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 40 mm
- Adjustable end position range/length
- 5 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Yoke | Piston | Piston rod | Ball cage guide | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...60 °C
- Impact energy in the end positions
- 0.1 Nm
- Max. force Fy
- 350 N
- Max. force Fz
- 350 N
- Max. torque Mx
- 2.2 Nm
- Max. torque My
- 2.2 Nm
- Max. torque Mz
- 1.3 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Moving mass
- 133 g
- Product weight
- 353 g
- Basic weight with 0 mm stroke
- 353 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170514. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
