Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

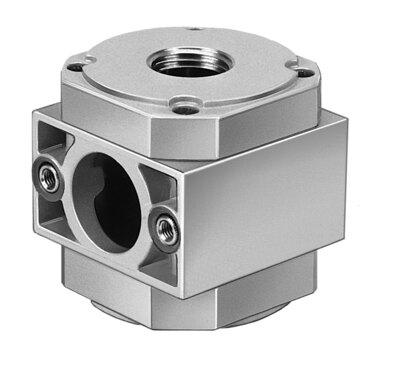

Reference imageConfirm configuration by manufacturer part number.
Festo
170685
Branching module FRM-D-MIDI
The Festo 170685 is a die-cast aluminum branching module featuring a standard nominal flow rate of 8200 l/min in the main flow direction from 1 to 2 and an operating pressure range of 0 MPa to 1.6 MPa (0 bar to 16 bar). This component accommodates compressed air in accordance with ISO 8573-1:2010 [7:-:-] or inert gases through pneumatic connections G1/2 and G1/4, utilizing any mounting position and offering a corrosion resistance class of CRC 2. Weighing 382 g, the RoHS-compliant unit operates, stores, and processes media within a temperature range of -10 °C to 60 °C while conforming to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170685
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170685.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar
- Standard nominal ow rate in main ow direction 1 -> 2
- 8200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 382 g
- Pneumatic connection 3
- G1/2
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170685. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
