Festo
170824

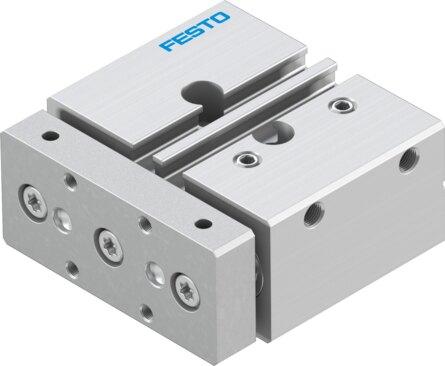

Guided drive DFM-12-10-P-A-GF
The Festo 170824 is a double-acting industrial guide component featuring a 12 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates at pressures from 2 bar to 10 bar, supports a maximum speed of 0.8 m/s, incorporates elastic cushioning rings at both ends, and includes position sensing via proximity switch. Designed with a 25 mm distance from the center of gravity of the payload to the yoke plate and a maximum force Fy of 240 N, this unit functions within an ambient temperature range of -20 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170824
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170824.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 25 mm
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.07 Nm
- Max. force Fy
- 240 N
- Max. force Fy static
- 240 N
- Max. force Fz
- 240 N
- Max. force Fz static
- 240 N
- Max. torque Mx
- 4.92 Nm
- Max. static moment Mx
- 4.92 Nm
- Max. torque My
- 2.06 Nm
- Max. static moment My
- 2.06 Nm
- Max. torque Mz
- 2.06 Nm
- Max. static moment Mz
- 2.06 Nm
- Max. permissible torque load Mx as a function of the stroke
- 0.92 Nm
- Max. payload as a function of the stroke at dened distance xs
- 29 N
