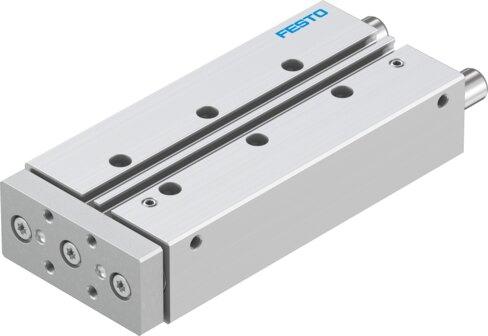

Name: Festo 170839 Guided drive DFM-16-100-P-A-GF
Brand: Festo

Guided drive DFM-16-100-P-A-GF

The Festo 170839 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 100 mm stroke, and a plain-bearing yoke guide designed for operating pressures between 2 bar and 10 bar. This component achieves a maximum speed of 0.8 m/s, a maximum force Fy of 608 N, and incorporates elastic cushioning rings at both ends with an end-position impact energy of 0.15 Nm. Suitable for an ambient temperature range of -20 °C to 80 °C, it supports position sensing via proximity switches and operates with compressed air conforming to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170839
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170839.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 100 mm
Piston diameter: 16 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.15 Nm
Max. force Fy: 608 N
Max. force Fy static: 608 N
Max. force Fz: 608 N
Max. force Fz static: 608 N
Max. torque Mx: 13.98 Nm
Max. static moment Mx: 13.98 Nm
Max. torque My: 10.34 Nm
Max. static moment My: 10.34 Nm
Max. torque Mz: 10.34 Nm
Max. static moment Mz: 10.34 Nm
Max. permissible torque load Mx as a function of the stroke: 1.46 Nm
Max. payload as a function of the stroke at dened distance xs: 49 N
