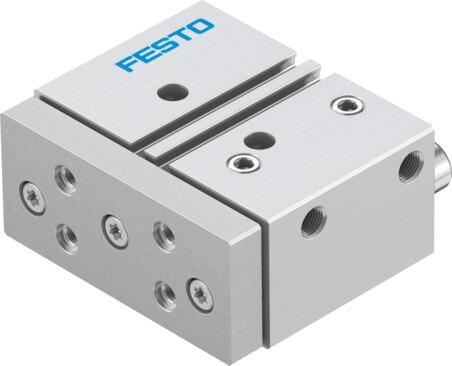

Reference imageConfirm configuration by manufacturer part number.
Festo
170847
Guided drive DFM-25-20-P-A-GF
This Festo 170847 industrial component features a 25 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a 50 mm distance from the payload centre of gravity to the yoke plate. It utilizes a plain-bearing guide structural design, elastic cushioning rings or pads at both ends, and supports double-acting operation using compressed air conforming to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 1.5 bar to 10 bar. The unit accommodates position sensing via proximity switch, operates at a maximum speed of 0.8 m/s, withstands an ambient temperature range of -20 °C to 80 °C, and provides a maximum force Fy of 810.7 N with an impact energy of 0.3 Nm in the end positions. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170847
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170847.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 20 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. force Fy
- 810.7 N
- Max. force Fy static
- 810.7 N
- Max. force Fz
- 810.7 N
- Max. force Fz static
- 810.7 N
- Max. torque Mx
- 27.56 Nm
- Max. static moment Mx
- 27.56 Nm
- Max. torque My
- 15.4 Nm
- Max. static moment My
- 15.4 Nm
- Max. torque Mz
- 15.4 Nm
- Max. static moment Mz
- 15.4 Nm
- Max. permissible torque load Mx as a function of the stroke
- 6.27 Nm
- Max. payload as a function of the stroke at dened distance xs
- 121 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170847. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
