Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
170848

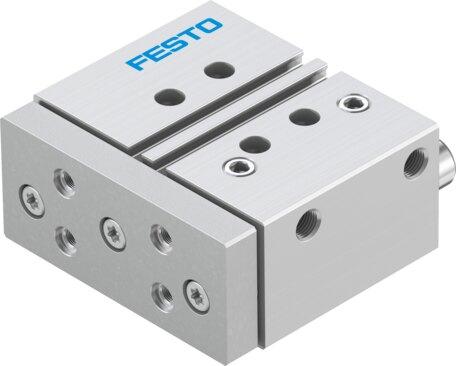

Guided drive DFM-25-25-P-A-GF
Engineered with a 25 mm piston diameter, a 25 mm stroke, and a yoke drive unit operating mode, this Festo industrial component features a plain-bearing guide and elastic cushioning rings or pads at both ends. The double-acting unit operates on compressed air within a pressure range of 1.5 bar to 10 bar, achieving a maximum speed of 0.8 m/s, a maximum force Fy of 810.7 N, and position sensing via a proximity switch. Built for an ambient temperature range of -20 °C to 80 °C, the assembly accommodates any mounting position while maintaining ISO 14644-1 Class 6 cleanroom suitability and a 50 mm distance from the center of gravity of the payload to the yoke plate xs. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 25 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. force Fy
- 810.7 N
- Max. force Fy static
- 810.7 N
- Max. force Fz
- 810.7 N
- Max. force Fz static
- 810.7 N
- Max. torque Mx
- 27.56 Nm
- Max. static moment Mx
- 27.56 Nm
- Max. torque My
- 15.4 Nm
- Max. static moment My
- 15.4 Nm
- Max. torque Mz
- 15.4 Nm
- Max. static moment Mz
- 15.4 Nm
- Max. permissible torque load Mx as a function of the stroke
- 5.9 Nm
- Max. payload as a function of the stroke at dened distance xs
- 116 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 170848. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
