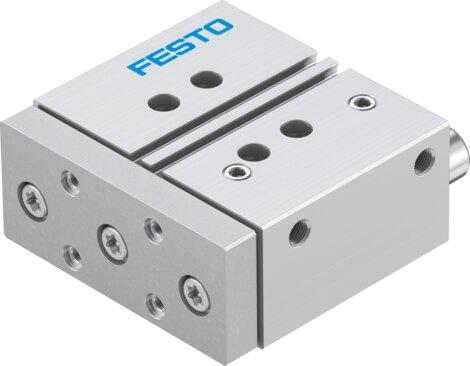

Reference imageConfirm configuration by manufacturer part number.
Festo
170857
Guided drive DFM-32-40-P-A-GF
The Festo 170857 is a double-acting industrial drive unit featuring a 32 mm piston diameter, a 40 mm stroke, and a yoke drive operating mode with a 50 mm distance from the payload center of gravity to the yoke plate. Equipped with a plain-bearing guide, elastic cushioning rings or pads at both ends, and position sensing via proximity switch, this component operates within a pressure range of 0.15 MPa to 1 MPa and achieves a maximum speed of 0.8 m/s with a maximum force Fy of 1227 N. It functions across an ambient temperature range of -20 °C to 80 °C using compressed air as per ISO 8573-1:2010 [7:4:4], featuring Class 6 cleanroom suitability according to ISO 14644-1 and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170857
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170857.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 40 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 Nm
- Max. force Fy
- 1227 N
- Max. force Fy static
- 1227 N
- Max. force Fz
- 1227 N
- Max. force Fz static
- 1227 N
- Max. torque Mx
- 47.84 Nm
- Max. static moment Mx
- 47.84 Nm
- Max. torque My
- 24.53 Nm
- Max. static moment My
- 24.53 Nm
- Max. torque Mz
- 24.53 Nm
- Max. static moment Mz
- 24.53 Nm
- Max. permissible torque load Mx as a function of the stroke
- 8.6 Nm
- Max. payload as a function of the stroke at dened distance xs
- 161 N
