Name: Festo 170863 Guided drive DFM-32-200-P-A-GF
Brand: Festo

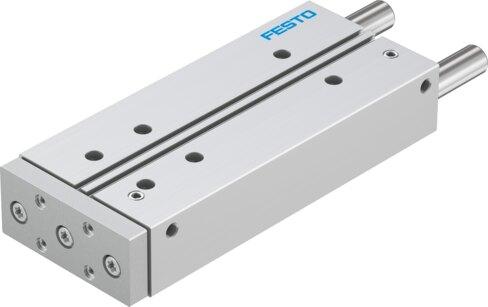

Guided drive DFM-32-200-P-A-GF

This Festo 170863 industrial component is a double-acting guide drive unit featuring a 32 mm piston diameter and a 200 mm stroke. It utilizes a plain-bearing guide and a yoke drive unit operating mode with elastic cushioning rings or pads at both ends, supporting an ambient temperature range of -20 °C to 80 °C and an operating pressure of 0.15 MPa to 1 MPa. Position sensing is achieved via proximity switch, while operating medium parameters follow compressed air standards per ISO 8573-1:2010 [7:4:4] with oil lubrication possible. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170863
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170863.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 200 mm
Piston diameter: 32 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.4 Nm
Max. force Fy: 1227 N
Max. force Fy static: 1227 N
Max. force Fz: 1227 N
Max. force Fz static: 1227 N
Max. torque Mx: 47.84 Nm
Max. static moment Mx: 47.84 Nm
Max. torque My: 47.84 Nm
Max. static moment My: 47.84 Nm
Max. torque Mz: 47.84 Nm
Max. static moment Mz: 47.84 Nm
Max. permissible torque load Mx as a function of the stroke: 5.57 Nm
Max. payload as a function of the stroke at dened distance xs: 127 N
