Festo
170877

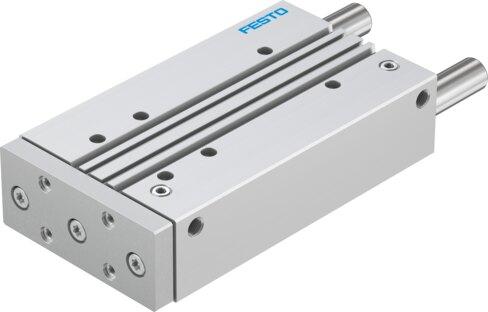

Guided drive DFM-50-200-P-A-GF
The Festo 170877 industrial component features a 50 mm piston diameter, a 200 mm stroke, and a yoke drive unit operating mode with a double-acting mode of operation. Equipped with a plain-bearing guide, elastic cushioning rings or pads at both ends, and position sensing via proximity switch, it operates at pressures from 0.1 MPa to 1 MPa and handles a maximum speed of 0.6 m/s with a maximum force Fy of 1533 N. This unit functions with compressed air as per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 °C to 80 °C and achieves ISO 14644-1 cleanroom suitability class 6. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170877
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170877.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 200 mm
- Piston diameter
- 50 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Max. speed
- 0.6 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 Nm
- Max. force Fy
- 1533 N
- Max. force Fy static
- 1533 N
- Max. force Fz
- 1533 N
- Max. force Fz static
- 1533 N
- Max. torque Mx
- 84.33 Nm
- Max. static moment Mx
- 84.33 Nm
- Max. torque My
- 69.77 Nm
- Max. static moment My
- 69.77 Nm
- Max. torque Mz
- 69.77 Nm
- Max. static moment Mz
- 69.77 Nm
- Max. permissible torque load Mx as a function of the stroke
- 10.62 Nm
- Max. payload as a function of the stroke at dened distance xs
- 174 N
