Festo
170882

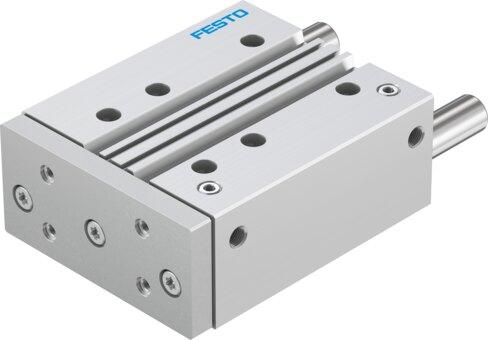

Guided drive DFM-63-125-P-A-GF
This Festo industrial component, part number 170882, is a double-acting guide drive unit featuring a 63 mm piston diameter and a 125 mm stroke. It incorporates a plain-bearing guide, elastic cushioning rings or pads at both ends, and position sensing via proximity switch, operating at pressures between 1 bar and 10 bar with a maximum speed of 0.6 m/s. The unit accommodates a maximum force Fy of 1533 N, an end-position impact energy of 1.3 Nm, and a 50 mm distance from the payload center of gravity to the yoke plate. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 125 mm
- Piston diameter
- 63 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Max. speed
- 0.6 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1.3 Nm
- Max. force Fy
- 1533 N
- Max. force Fy static
- 1533 N
- Max. force Fz
- 1533 N
- Max. force Fz static
- 1533 N
- Max. torque Mx
- 95.83 Nm
- Max. static moment Mx
- 95.83 Nm
- Max. torque My
- 69.77 Nm
- Max. static moment My
- 69.77 Nm
- Max. torque Mz
- 69.77 Nm
- Max. static moment Mz
- 69.77 Nm
- Max. permissible torque load Mx as a function of the stroke
- 16.19 Nm
- Max. payload as a function of the stroke at dened distance xs
- 229 N
