170888

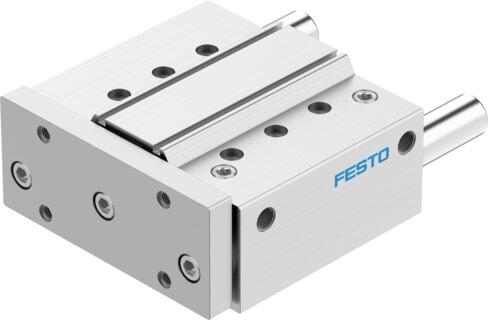

Name: Festo 170888 Guided drive DFM-80-100-P-A-GF
Brand: Festo

Guided drive DFM-80-100-P-A-GF

The Festo part number 170888 is a double-acting industrial drive unit featuring an 80 mm piston diameter and a 100 mm stroke with a yoke structural design and plain-bearing guide. It operates within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], achieving a maximum speed of 0.4 m/s and a maximum force Fy of 2320 N with elastic cushioning rings or pads at both ends. The component includes position sensing via proximity switch, allows an ambient temperature range of -20 °C to 80 °C, and exhibits a distance of centre of gravity of payload to yoke plate xs of 125 mm. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170888
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170888.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 125 mm
Stroke: 100 mm
Piston diameter: 80 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Max. speed: 0.4 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.75 Nm
Max. force Fy: 2320 N
Max. force Fy static: 2320 N
Max. force Fz: 2320 N
Max. force Fz static: 2320 N
Max. torque Mx: 179.8 Nm
Max. static moment Mx: 179.8 Nm
Max. torque My: 126.4 Nm
Max. static moment My: 126.4 Nm
Max. torque Mz: 126.4 Nm
Max. static moment Mz: 126.4 Nm
Max. permissible torque load Mx as a function of the stroke: 36.7 Nm
Max. payload as a function of the stroke at dened distance xs: 329 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 170888. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
