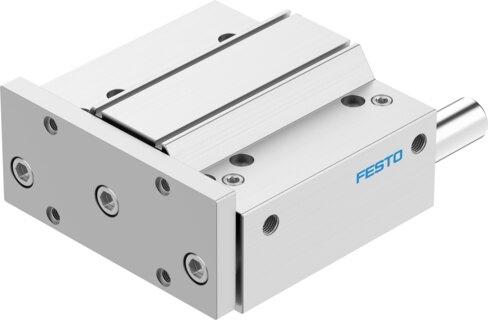

Name: Festo 170896 Guided drive DFM-100-125-P-A-GF
Brand: Festo

Guided drive DFM-100-125-P-A-GF

The Festo part number 170896 is a double-acting industrial guide drive unit featuring a 100 mm piston diameter and a 125 mm stroke, operating via a yoke drive unit mode with a plain-bearing guide. It operates at pressures from 0.05 MPa to 1 MPa (0.5 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], achieves a maximum speed of 0.4 m/s, and delivers a max force Fy of 3640 N with elastic cushioning rings/pads at both ends. Designed with a center of gravity of payload to yoke plate xs of 125 mm, position sensing via proximity switch, and ISO 14644-1 cleanroom suitability class 6, this component functions across an ambient temperature range of -20 °C to 80 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 170896
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 170896.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 125 mm
Stroke: 125 mm
Piston diameter: 100 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Max. speed: 0.4 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 1 Nm
Max. force Fy: 3640 N
Max. force Fy static: 3640 N
Max. force Fz: 3640 N
Max. force Fz static: 3640 N
Max. torque Mx: 342.2 Nm
Max. static moment Mx: 342.2 Nm
Max. torque My: 205.7 Nm
Max. static moment My: 205.7 Nm
Max. torque Mz: 205.7 Nm
Max. static moment Mz: 205.7 Nm
Max. permissible torque load Mx as a function of the stroke: 63.14 Nm
