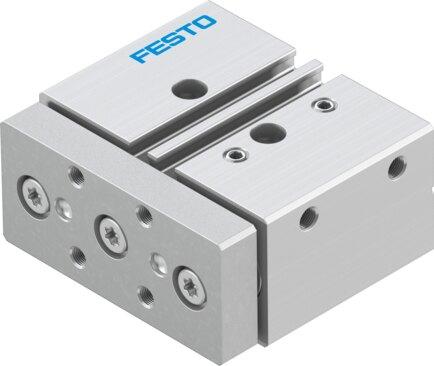

Reference imageConfirm configuration by manufacturer part number.
Festo
170907
Guided drive DFM-16-10-P-A-KF
The Festo part number 170907 is a double-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with elastic cushioning rings or pads at both ends. Guided by a recirculating ball bearing, this unit supports an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), a maximum speed of 0.8 m/s, and a maximum force Fy of 389 N with the center of gravity of the payload to the yoke plate xs at 50 mm. It provides position sensing via a proximity switch, operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -5 °C to 60 °C, and achieves ISO 14644-1 cleanroom suitability class 6. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 170907
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 170907.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 10 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 0.15 Nm
- Max. force Fy
- 389 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 389 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 8.95 Nm
- Max. static moment Mx
- 9.55 Nm
- Max. torque My
- 3.89 Nm
- Max. static moment My
- 4.15 Nm
- Max. torque Mz
- 3.89 Nm
- Max. static moment Mz
- 4.15 Nm
- Max. permissible torque load Mx as a function of the stroke
- 2.19 Nm
- Max. payload as a function of the stroke at dened distance xs
- 45 N
